Sungrow AC22E 22kW AC EV Charger with iHome Manager | 5m or 7m Cable | Mounting Stand

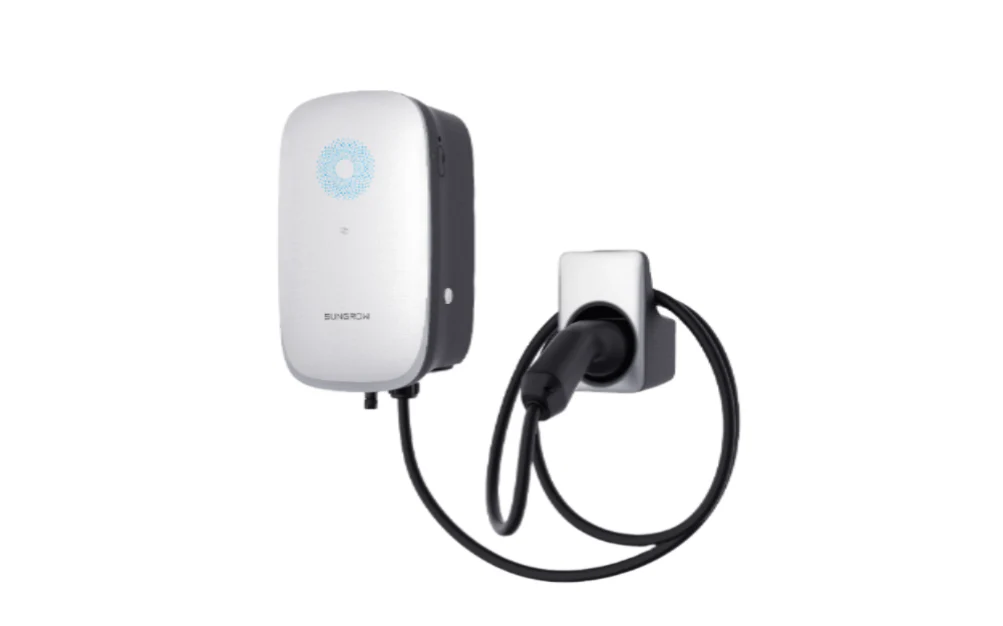

The Sungrow AC22E is a high-performance 22 kW AC electric vehicle charger designed for residential, commercial and fleet applications.
With support for both single-phase and three-phase configurations, it offers flexible power delivery of up to 22kW on 3 phase, available with 5m or 7m cable length options. The Sungrow AC EV charger integrates seamlessly with Sungrow’s solar and energy systems for enhanced efficiency. Whether wall-mounted or installed on a stand column, the Sungrow AC22E offers a simple and space-saving charging solution.
Please note: This product is currently on Pre-order with stock due 2nd April 2026. The timeframe is based on the latest ETA provided by Sungrow. Please note that any changes to this schedule are outside of our control.

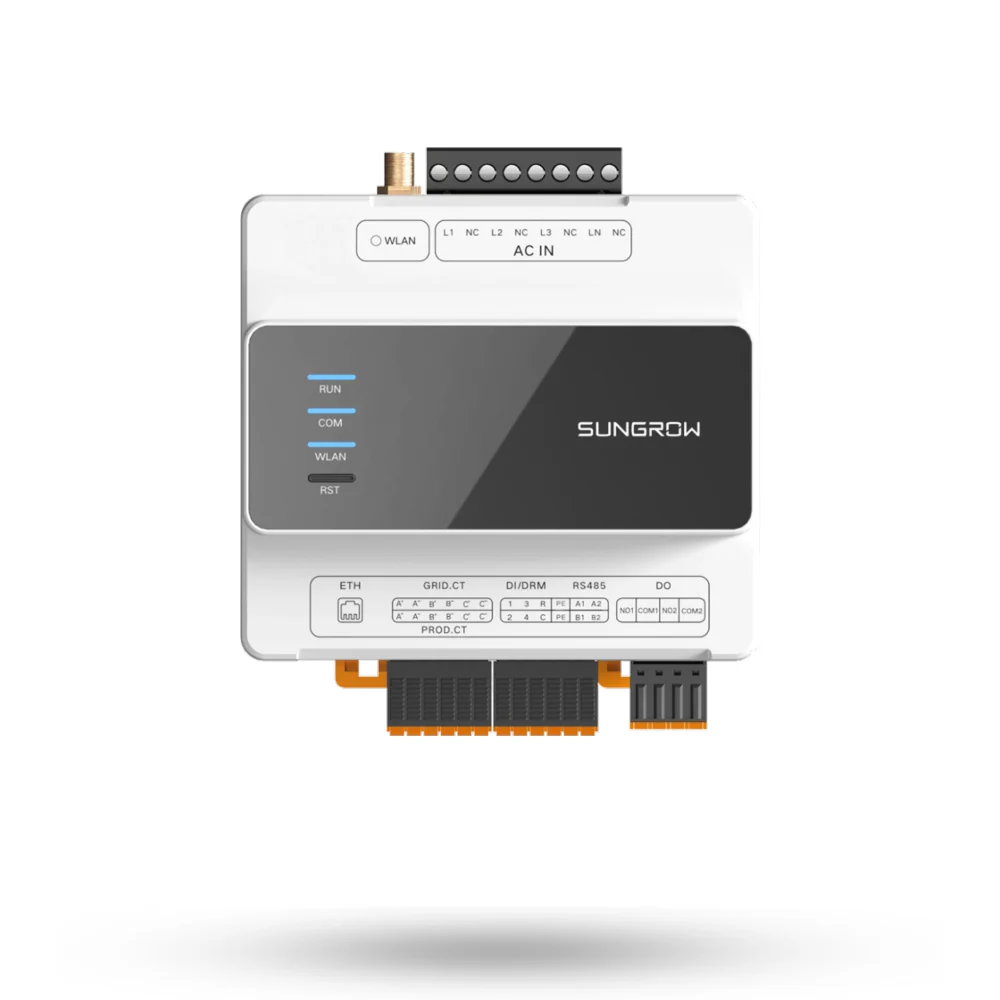

Package Includes the Sungrow iHomeManager
The iHomeManager maximises green energy use, improves self-consumption, and reduces electricity costs, empowering customers to centralise and optimise their energy management seamlessly.
Equipped with smart features and built-in safety systems, the charger supports DC fault current detection, adaptive load management, and app-based control via Wi-Fi, Ethernet, or 4G. It’s also OCPP 1.6J compliant, enabling smooth integration with back-end platforms and load balancing systems. With a durable IP65 and IK10-rated enclosure, it's suitable for both indoor and outdoor use.
Main Features
22kW Output (Configurable to 11kW or 7.4kW): Flexible power settings to match household or commercial needs.
Smart Charging Modes: Eco, fast, scheduled, and customised charging via the iSolarCloud app.
Robust Safety Protections: Integrated DC fault detection, surge, and over-temperature protection.
Connectivity & Control: OCPP 1.6J communication, OTA updates, and RFID or app authentication.
Weather-Resistant Design: IP65-rated housing with IK10 impact protection for reliable outdoor use.
Quick Specs
-
Max Charging current 32A / 16A
-
5m or 7m cable with type 2 plug and cable holder included
-
Communication Interfaces include: LAN / WiFi / 4G (to cloud) and RS485 (to inverter/meter)
-
Dimensions: 346mm H x 214mm W x 125mm D / <6.65kg (including type 2 cable)
- Colour: Metallic Silver
-
Installation: Wall-mount (default), stand column (optional)
-
Environmental Rating: IP65, -30°C to 50°C operating temp
- 3-year warranty
Optional Add-On

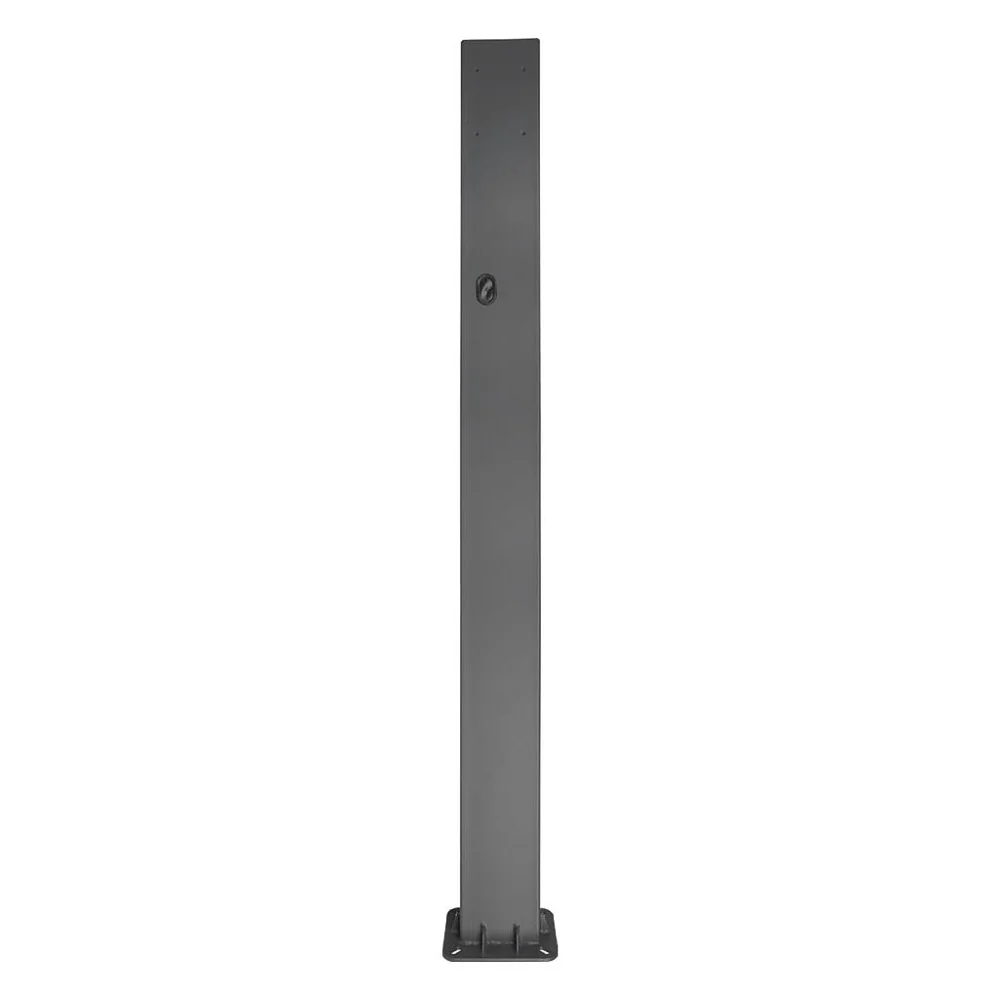

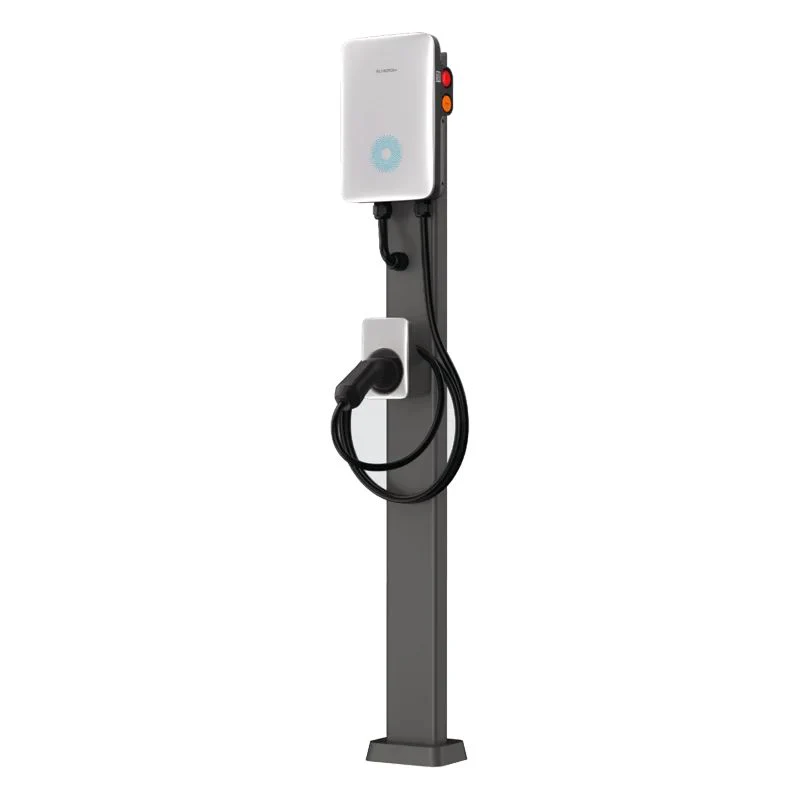

Sungrow Single or Dual AC EV Charger Pedestal / Mounting Post
Create a sleek, durable, and professional EV charging setup with Sungrow’s purpose-built post mounts for AC chargers.
Designed for locations without suitable wall space, these pedestals provide solid support and a premium finish, making them ideal for home driveways, workplace carparks and public charging stations.
Main Features
-
Perfect Fit – Engineered for Sungrow AC chargers, ensuring seamless integration and a modern look.
-
Durable Construction – Built with heavy-duty, corrosion-resistant materials for long-term reliability.
-
Stable & Secure – Offers a strong freestanding base for safe EV charging in any environment.
-
Flexible Installation – Suitable for residential, commercial, and fleet applications where wall mounting isn’t possible.
- Professional Appearance – Delivers a clean, organised finish that enhances any charging space.
When combined with the Sungrow AC22E-01 EV Charger, these pedestals uphold the same level of quality, reliability, and design excellence that define Sungrow’s energy solutions.
Quick Specs
-
A single-sided floor-mounted pedestal/post mount to suit one Sungrow AC EV charger
-
A dual-sided floor-mounted pedestal/post mount to suit two Sungrow AC EV chargers
-
Pole dimensions: 1350mm H x 170mm W x 130mm D
-
Pedestal dimensions: 5mm H x 170mm W x 130mm D
-
Weight: 5.2kg
-
Colour: RAL 7015
- Material: Carbon Steel
About The Brand
Sungrow is a global leader in renewable energy inverter solutions, with over 49 GW installed worldwide by June 2017. Founded in 1997 by Professor Renxian Cao, the company is known for its strong focus on R&D, holding numerous patents and offering a wide range of solar inverters and energy storage systems for residential, commercial, and utility-scale use. With over two decades of innovation, Sungrow’s products are available in more than 50 countries, holding around 25% market share in Germany and over 15% globally.
Sungrow Australia has operated out of Sydney since 2012, establishing one of the largest local teams for solar inverter manufacturing in the country. The sales and technical support teams are based in North Sydney, with warehousing in Pendle Hills. With over six years of local service experience, Sungrow has built a national support network to assist installers and customers with warranty and technical enquiries.
Specifications
Sungrow AC22E-01 22kW AC EV Charger DATASHEET
Sungrow iHomeManager DATASHEET
Manuals
How to Install Sungrow iHome Manager Video
Original: $739.17
-70%$739.17
$221.75Product Information
