Sigenergy 7-22kW AC EV Charger 4G Type 2 (With Charging Cable)

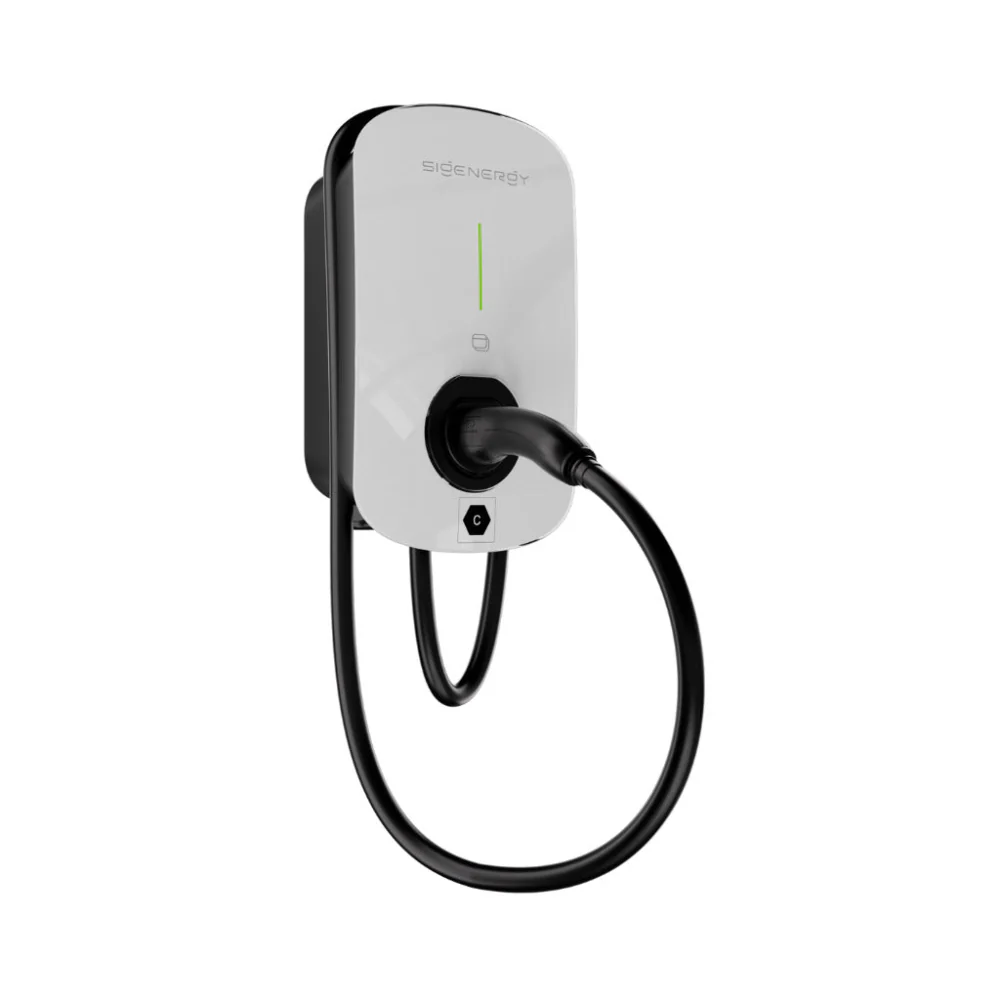

The Sigenergy EV AC Charger with an included tethered charging cable is a smart and sustainable EV charger, perfect for modern homes and energy systems.

Designed for Australian EV drivers the Sigenergy AC EV charger easily integrates with the Sigenergy ecosystem and provides safe, reliable charging at home, work including outdoors.

Main Features:

Smart App Control with mySigen. Monitor energy use, set charging schedules, and manage load dynamically - all from the palm of your hand. The mySigen app gives you full visibility and control over your EV charging, anytime, anywhere.

Dynamic Load Management = No More Overloads. Thanks to intelligent load balancing, the Sigen EV AC Charger prevents grid overloads automatically. Your home’s electrical system stays protected, and your EV charges safely—even during peak times.

Eco-Friendly Charging Powered by Your Solar System. Pair it with the Sigenergy home energy solution and tap into green power effortlessly. Whether it's 100% PV charging, solar boost, or fast charging, you're in full control of how your EV gets charged—while saving money and reducing your carbon footprint.

Easy Installation, Flexible Mounting. Enjoy quick installation with fewer steps and dual cable entry (top or bottom). Its wall-mounted, IP65-rated design makes it ideal for both indoor garages and outdoor environments.

Built-in Safety Meets Lower Installation Costs. With integrated DC and AC fault detection and residual current protection, there's no need for costly external protection devices. Safety is built in - right out of the box.

OCPP Compatibility for Broader Access. Whether you're using RFID cards, app-based authentication, or auto-charge features, the Sigen EV AC Charger supports OCPP 1.6J ED 2, ensuring compatibility with a wide range of networked EV charging platforms.

Quick Specs:

Power Options: 7kW / 11kW / 22kW
Input Voltage:
7kW: 220–240V (Single-phase)
11kW & 22kW: 220–240V / 380–415V (Three-phase)
Output Current: 6–32A
Connector Type: Type 2 (with shutter)
5m charging cable length - this is the factory-fitted cable that extends from the unit. Untethered version without cable also available.
Charging Modes:
100% Solar
Solar Boost
Fast Charging
Communication: 4G / Wi-Fi / Ethernet, RS485 (Modbus RTU)
Smart Control: mySigen App, RFID, Auto-Charge
Dynamic Load Management: Supported
Protection Features:
AC & DC fault detection
Over/under voltage protection
Over-temperature protection
Surge protection
PEN and ground fault protection
Ingress Protection: IP65 (indoor/outdoor use)
Operating Temperature: -30°C to +55°C
Mounting Method: Wall-mounted
Dimensions: 234 × 384 × 126 mm
Weight: 4.5 – 6.4 kg
Standards Compliance: IEC 61851, IEC 62955, EN standards
OCPP Compatibility: OCPP 1.6J Edition 2

Installation Guide Video:

Discover Our Full Range of Sigenergy Products Here

About The Brand:

Sigenergy is a forward-thinking company focusing on developing cutting-edge home and business energy solutions, including energy storage systems, solar inverters, and EV chargers. Our world-class R&D team of hundreds of industry talents shares the vision of making the world greener through continuous innovation.

We build next-generation energy products with optimum safety features by integrating the latest power electronics, digital, and AI technologies. With global sales and services, we aim to become our customers' most trusted partners on their journey to a more sustainable future.
